MICON

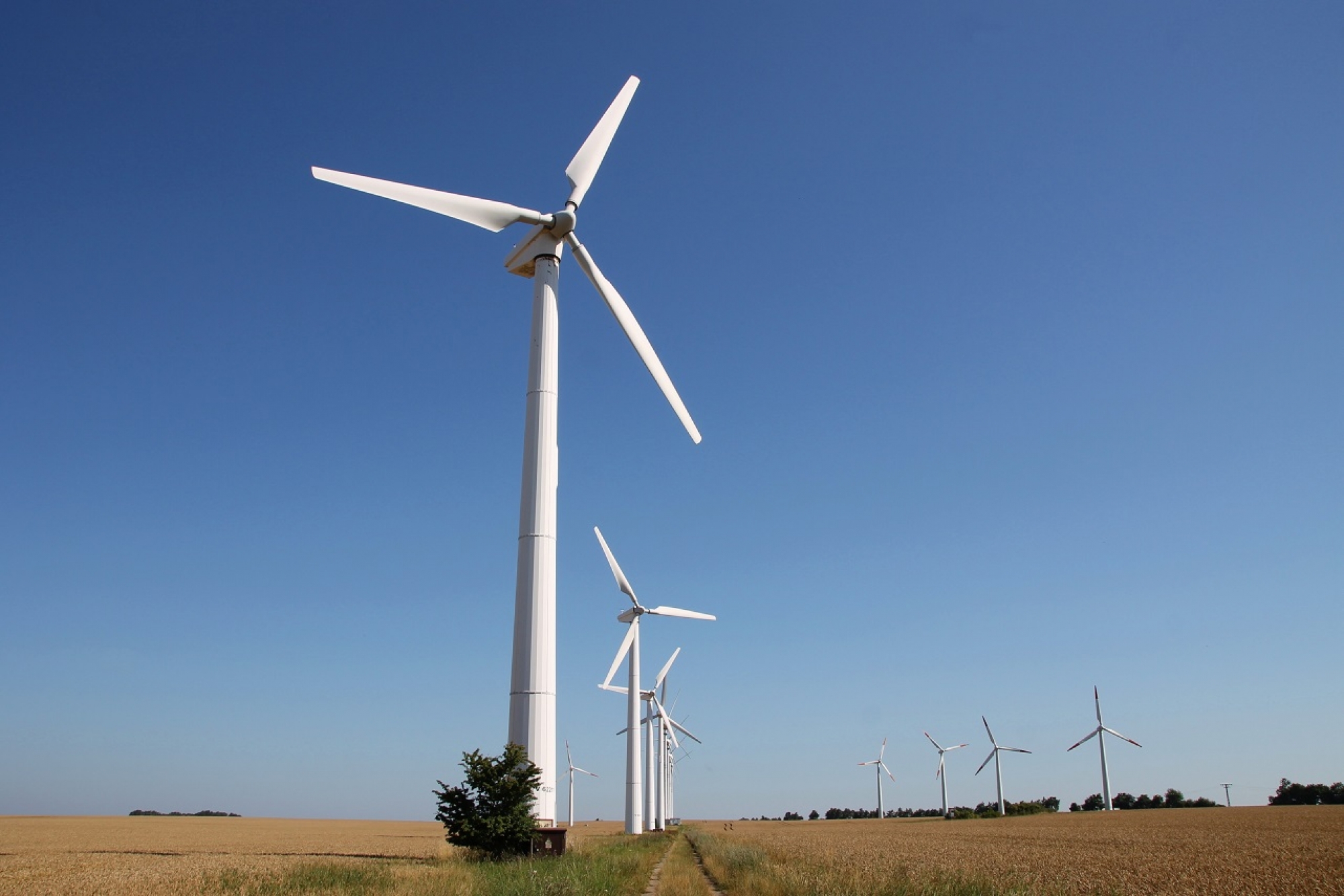

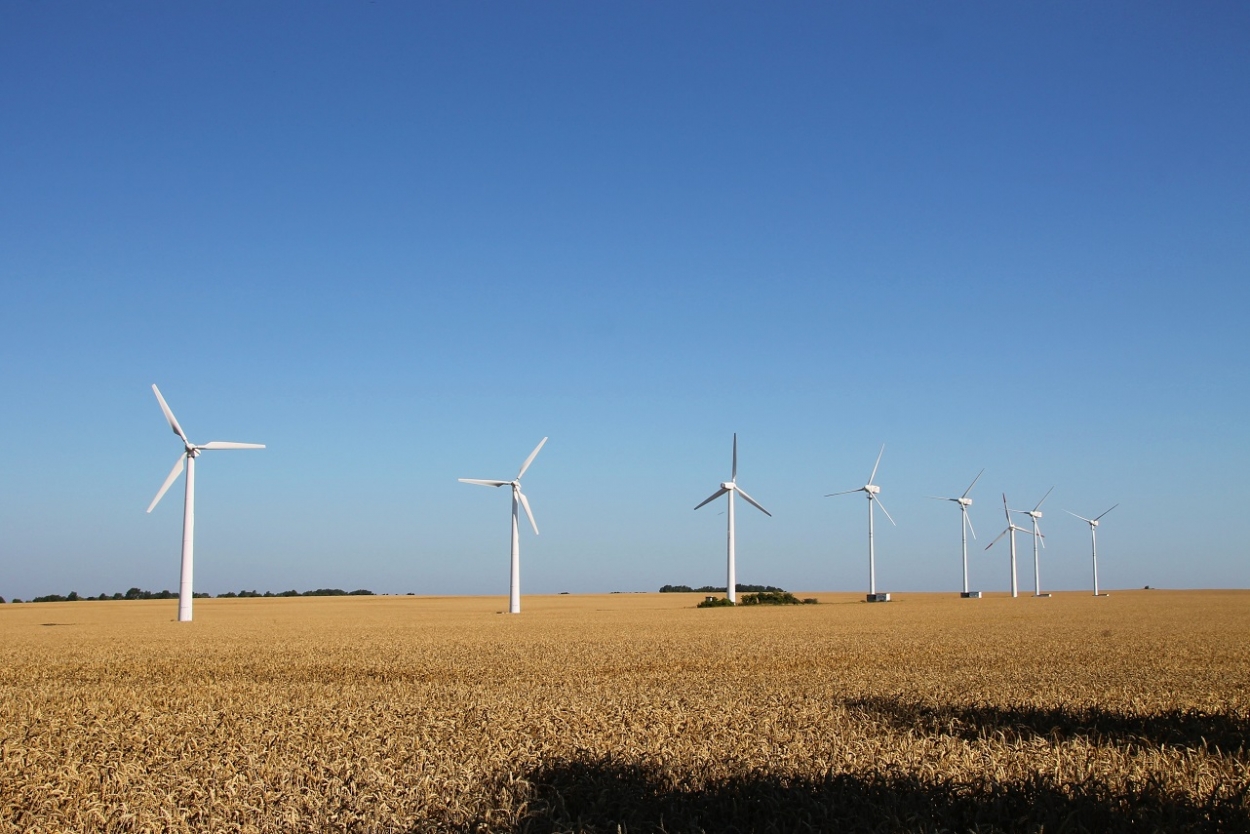

M530

The wind turbine M 530-175 is a production of Micon A/S , a manufacturer from Denmark. This manufacturer has been in business since 1983. Since year 1997, Micon A/S is no longer active. The manufacturer was taken over by NEG Micon A/S.

The rated power of Micon M 530-175 is 175,00 kW. At a wind speed of 4 m/s, the wind turbine starts its work. the cut-out wind speed is 26 m/s.

The rotor diameter of the Micon M 530-175 is 26 m. The rotor area amounts to 531 m². The wind turbine is equipped with 3 rotor blades. The maximum rotor speed is 41,5 U/min.

The Micon M 530-175 is fitted with a Spur gearbox. The gearbox has 2 stages.
In the generator, Micon A/S sets to Asynchronus. The manufacturer has used one generator for the M 530-175. The maximum speed of the generator is 1.500 U/min. The voltage amounts to 400 V. At the mains frequency, the M 530-175 is at 50 Hz.
In the construction of the tower, the manufacturer uses Steel tube. As corrosion protection for the tower Micon focuses on galvanized.

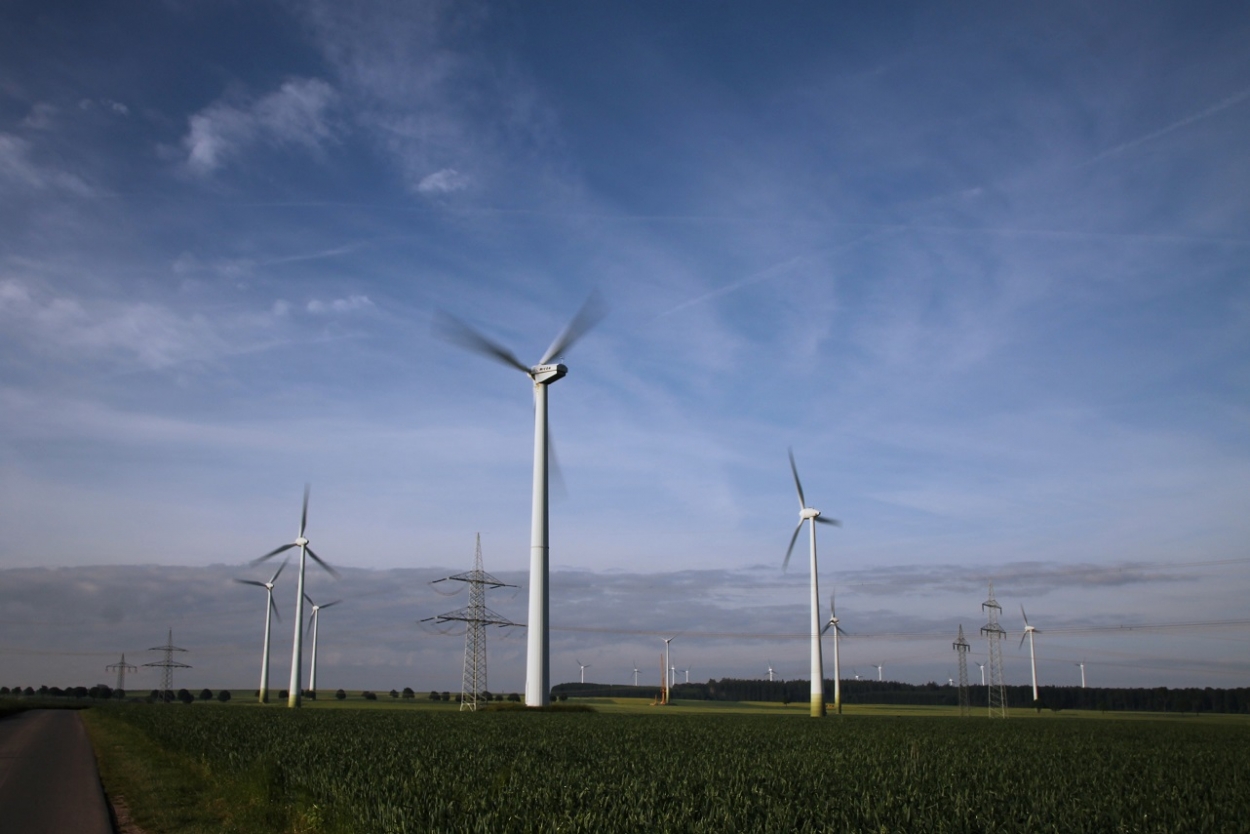

M700

Micon M 700-225 has a rated power of 225KW With a cut in wind speed of 3 m/s and a cut of wind speed of 25 m/s.
The rota diameter of the M700 is 29.8 metres
